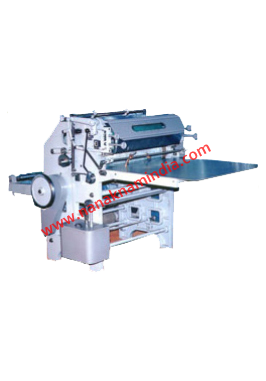

Varnishing Machine

Profile : Designed by most qualified Technicians experienced in the field. Fitted with Roller Bearings ensure smooth and light running of the machine.The Machine is Semi Automatic and leave impression of varnish only when paper is fed. Thus saves wastage of material , time and labour. Every part of machine is carefully tested at every stage during manufacture. It is better than many imported machines in working , structure and handling for varnishing of labels , cartoons , pictures , playing Cards, and any form for paper and cards. Conveyor belt stand with special arrangement for adjusting delivery tapes.

Trouble free Automatic Varnish up-lifting pump.
High quality of Workmanship with selected material and streamlined finish has this varnishing machine best throughout the market.Gumming is also done with this machine.

MACHINE SIZE 18″*24″ 20″*30″ 24″*36″ 30″ * 40″
OUTPUT ( per hour ) 1500 to 2000 —- 1400 to 1800 —-
WEIGHT 10 Qntls 11 Qntls 12 Qntls 13 Qntls
POWER REQUIRED 1 H.P. 1 H.P. 2 H.P. 2 H.P.
FLOOR AREA 4′ * 8′ 4′ * 8′ 5′ * 10′ 5′ * 10′
CONVEYOR LENGTH 21′ 21′ 21′ 21′
