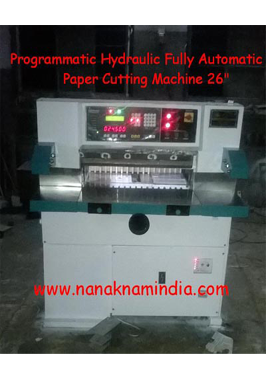

Small Fully Automatic Paper Cutting Machine

The paper cutting machine has features like automatic paper clamp, paper cut and paper send, high cut precision, low noise, and long life usage. Its design structure is easy to operate and insures safety. Its paper sending system adopts whole body slotless chrome worktable, linear guide and high-speed ball screw, so it can insure the correct position with a high speed. Both of the paper clamping device and paperguage device adopt hydraulic driven.

The pressure is adjusted stepless. The big pressure adjusting range insure various paper cutting pressure needs. It is equipped with photo cell, double hands cutting button, knife light line, knife seat jogging devices. Therefore, it can insure the operator’s safety and convenient operation, high cutting precision, low noise, and long life using. This machine is suitable to cut Carbonless Paper, art paper, gray paperboard, etc. It is suitable for the printing press, school, advertisement agent, and company, etc. This machine has passed CE safety and the hydraulic system is also passed European safety standard.

Maximum Cutting Width: 660mm

Maximum Cutting Length: 660mm

Maximum Cutting Height: 80mm

Maximum Clamping Pressure: 8000N

Sending paper Motor Power: 2.2kw

Cutting Motor Power: 0.12kw

Electric Power: Single/Three Phase

Nett Weight: 650Kgs

External Dimensions: 1500x1000x1350mm
